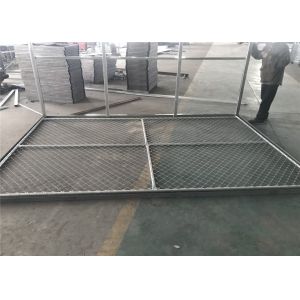

6 foot chain link fence panels

Product Categories

Top Fencing Co.Limited

Contact Now

Name: 6 foot chain link fence panels
Brand: LNF-Cyclone fence panels
Price: 8.88 USD

Brand Name : LNF-Cyclone fence panels

Model Number : 4'6'8' Height

Certification : ASTM

Place of Origin : American Design China Made

MOQ : 500 liner meter

Price : 8.88$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner ft

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 Steel Pipes and Wire

Mesh Opening : 2”x2/”(50mm x 50mm) 2¼”x2¼”(57mmx57mm) 2⅜x2⅜(60mmx60mm) 2½”x2½” (63mmx63mm)

Diameter : 10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m

Type : Chain mesh

Tubing : 1¼”(32mm) 1⅜”(35mm) 1½”(38mm) 1⅗”(40mm) 1⅝”(42mm) 1⅞”(48mm)and so on

Warranty : 5-15 years depand on treatment

Customized : Available

Size : 6ftx10ft ,6ftx8ft,6.5ft x 9ft etc

Accessoires : Top Couper

Contact Now

6x14' Chain Link Fence Panel for Construction Tube 1⅗"(40mm) 1.8 oz/ft2[500g/m2] hot-dipped galvanized Cross Brace

6-foot chain link fence panels widely accepted by the western market such as 6'x10' temporary fence and 6'x12' temporary chain link fence panels

Temporary Chain Link Fence /Construction Fence Panels Spec
Tubing	1¼"(32mm) 1⅜"(35mm) 1½"(38mm) 1⅗"(40mm) 1⅝"(42mm) 1⅞"(48mm)and so on
Thickness of Tubing	14ga/2.00mm 14.5ga/1.90mm 15ga/1.80mm 15.5ga/1.70mm 16ga /1.6mm 16.5ga/1.50mm 17ga1.42mm 18ga 1.22mm
Chain mesh aperture	2"x2"/(50mm x 50mm) 2¼"x2¼"(57mmx57mm) 2⅜"x2⅜"(60mmx60mm) 2½"x2½"(63mmx63mm)
Height	4ft/1220mm 6ft/1820mm 8ft/2420mm
Width	12ft /3650mm was wide acceptance by market also 8ft 9ft 10ft 14ft
Panels Size	6ft x 12ft ,8ft x 12ft, 4ft x 12ft and so on
Diameter /Gauge	10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m
Base Optional 1	36" length x 30" width x 8"Height /914mmx762mmx203mm
Base Optional 2	36" length x 16" width x 8" Height /914mmx406mmx203mm
Base Optional 3	30" length x 18" width x 8" Height /762mm x460mm x203mm
Standard	ASTM A392-06
Steel	Galvanized Steel Construction
Finish	Corrosion-Resistant Zinc Coating
Transport Packing	Metal pallet Wrapped with Plastic
HDG zinc thickness	14 microns 100gram/SQM 28 microns 200 gram/SQM 42 microns 300 gram/SQM and 84 microns 600 gram/SQM

2”/50mmmm center distance temporary fencing clips suit OD 25mm OD 32mm OD38mm OD 40mm OD 42mm outer pipes
Thickness of Clips	General Standard 3.75mm-4.00mm Available customized
Finish	Hot dipped galvanized in zinc bath pool minimum zinc coated 42 microns /300gram/SQM.
Bolts	Length available 100mm / 60mm/40mm with a 10mm and 8.00mm outer diameter
Nuts	15.9mm /17mm and so on depending on customers requirements
Packing	All packing in papers made carton available assembled
PHOTOS

TEMPORARY FENCE BASE -TOPFENCE001STEEL BASE
Size1	36"length x30" widthx8"Height /914mmx762mmx203mm
Size2	36" length x16" widthx8" Height /914mmx406mmx203mm
Size3	30" length x 18" width x 8" Height /762mm x460mm x203mm
Finish	Available hot-dipped galvanized or pr-galvanized 100gram-600 gram/SQM
Color	After powder coated available all color
Packing	Metal pallet wrapped with plastic film
Feature	Temporary Chain Link Fence Base
Materials	HDG steel all ARC full welding
Photos
